DAVIS PEDROLLO SS PUMP 1HP
UGX21,500,000
Motor connection: SINGLE PHASE Motor power (HP): 1 Delivery port: 1 " Body: Pump AISI 304 stainless steel Impeller: Brass Number of impellers: 1 Motor shaft: Stainless steel EN 10088-3 1.4104 Degree of protection IP: 68 Flow rate min. (l./min.): 5 Max flow (l./min.): 50 Min head (m.): 5 Max head (m.): 68 Cable length (m): 20 Employments: water supply, pressurization systems, irrigation Liquid temperature max. (° C): 40
Product Details
Description

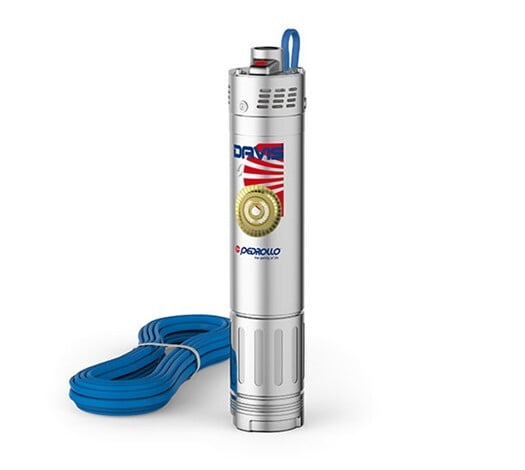

Ready to install, stainless steel monoblock submersible pump.
Complete with:
- motor with built-in capacitor and thermal overload protector;
- 20 m long power cable.
Suitable for use with clean water that does not contain abrasive particles and liquids that are not chemically aggressive towards the materials from which the pump is made.
As a result of their compact design and economy, they are suitable for domestic applications such as the distribution of water in combination with small pressure sets and for irrigation, etc.
Features
Liquid type: Clean Water
Uses: domestic, agriculture
Applications: water supply systems, pressure systems, irrigation pumps
typology: submersible
Family: peripheral 4"
Performance Range:
- Flow rate up to 50 l/min (3,0 m³/h)
- Head up to 75 m
Application Limit:
- Temperature of the liquid to +40 °C
• Vertical and horizontal installation
• Continuous service S1
