ELEMAX SH 15D 12KVA SINGLE PHASE
UGX49,000,000
ELEMAX MODEL- SH 15D DIESEL DRIVEN GENERATOR ENGINE SIZE KUBOTA D1005 WATER AND AIR COOLED ENGINE FOUR CYCLE ENGINE RPM 3000/3600 THREE PISTON ENGINE ELECTRIC STARTER RATED POWER OUTPUT 12 KVA MAXIMUM POWER OUTPUT 15.0 KVA FREQUENCY 50 HZ. LOW OIL SHUTDOWN AVR INBUILT VOLTAGE 220 VA. DC CURRENT 8.3 AMPS SINGLE PHASE FUEL TANK CAPACITY 53 LITERS OIL QUANTITY 4.3 LITERS WEIGHT 387 KGS MADE IN JAPAN
Product Details

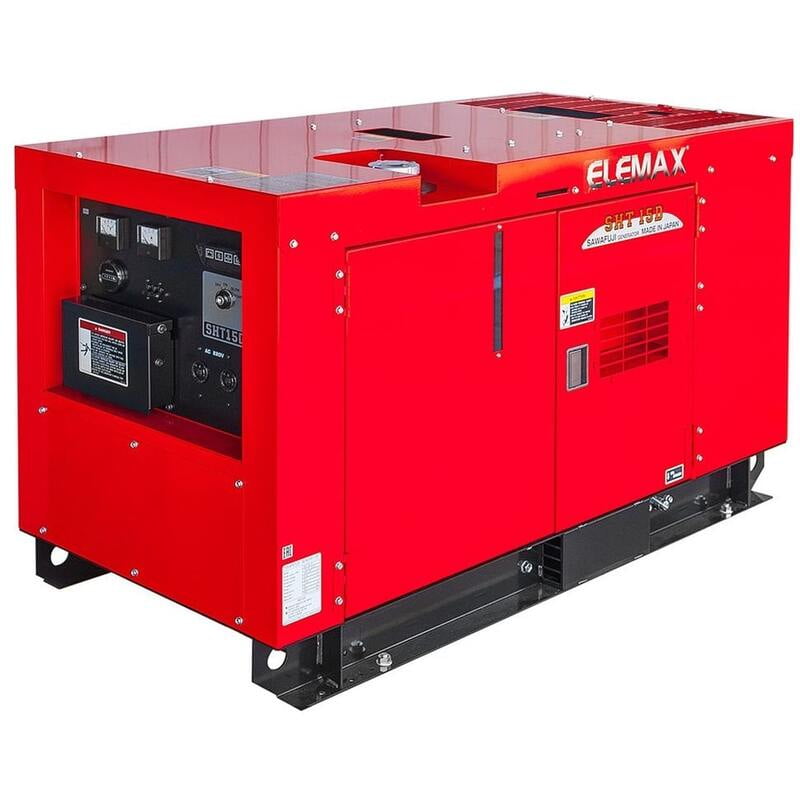

Elemax Sawafuji Diesel Generator SH15D
- Strong power
This generator sets is equipped with four-stroke engines,
- Advanced alternator winding
Waveform distortion is kept at a minimum level and the output is stable. The winding design protects the generator from short circuits and provides a stable output while running inductive loads.
- Low oil alarm system
Before the oil level drops to the limited level, the generator set will stop automatically. The whole set can be restarted only if the oil is refilled.
- Application of new Automatic Voltage Regulator
The Automatic Voltage Regulator not only can smooth the output but also can provide reasonable protec-tion against the overload of the whole set, thus avoid damage to the set.
Specifications
- Model - Elemax SH15D
- Max. output - 12000 Watt
- Rated output - 10000 Watt
- Engine Type - 1-cylinder engine
- Lube oil brand - SEA 50W
- Displacement - 163 cc
- Rated speed - 3000 rpm/min
- Fuel capacity - 27 ltr
- Noise level - 72 dB (7m)
- Oil alarm - Yes
- Electric
- Warranty - 12 months
- Accessories - Ac plug
